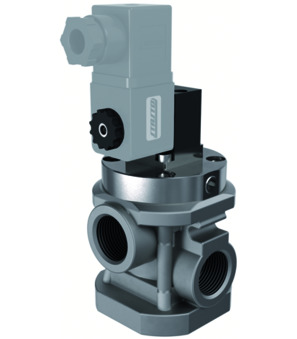

3/2-way valves - air / vacuum
PV32W1S6E12V
3/2-way poppet valve series PV; actuation electrical/spring; external control air connection; pressure range -1...0bar; NC; type of coil SCN; connector size 32mm; connection 1/2"; nominal diameter 15mm; control port M5; flow rate 5500Nl/min
262.94 € 262.94 EUR
PV32W1S6E34V
3/2-way poppet valve series PV; actuation electrical/spring; external control air connection; pressure range -1...0bar; NC; type of coil SCN; connector size 32mm; connection 3/4"; nominal diameter 20mm; control port M5; flow rate 6500Nl/min
280.24 € 280.24 EUR
PV32W1S6E10V
3/2-way poppet valve series PV; actuation electrical/spring; external control air connection; pressure range -1...0bar; NC; type of coil SCN; connector size 32mm; connection 1"; nominal diameter 25mm; control port 1/8"; flow rate 13500Nl/min
432.51 € 432.51 EUR
PV32W1S6E15V
3/2-way poppet valve series PV; actuation electrical/spring; external control air connection; pressure range -1...0bar; NC; type of coil SCN; connector size 32mm; connection 11/2"; nominal diameter 40mm; control port 1/8"; flow rate 35000Nl/min
1,110.46 € 1110.46 EUR
PV32W1S6E20V
3/2-way poppet valve series PV; actuation electrical/spring; external control air connection; pressure range -1...0bar; NC; type of coil SCN; connector size 32mm; connection 2"; nominal diameter 50mm; control port 1/8"; flow rate 60000Nl/min
2,877.28 € 2877.28 EUR
PV32W1S6M12A
3/2-way poppet valve series PV; actuation electrical/spring; internal control air; pressure range 3...10bar; NC; type of coil SCN; connector size 32mm; connection 1/2"; nominal diameter 15mm; flow rate 5500Nl/min
250.37 € 250.37 EUR
PV32W1S6M34A
3/2-way poppet valve series PV; actuation electrical/spring; internal control air; pressure range 3...10bar; NC; type of coil SCN; connector size 32mm; connection 3/4"; nominal diameter 20mm; flow rate 6500Nl/min
264.83 € 264.83 EUR
PV32W1S6M10A
3/2-way poppet valve series PV; actuation electrical/spring; internal control air; pressure range 3...10bar; NC; type of coil SCN; connector size 32mm; connection 1"; nominal diameter 25mm; flow rate 13500Nl/min
417.21 € 417.21000000000004 EUR
PV32W1S6M15A
3/2-way poppet valve series PV; actuation electrical/spring; internal control air; pressure range 3...10bar; NC; type of coil SCN; connector size 32mm; connection 11/2"; nominal diameter 40mm; flow rate 35000Nl/min
1,082.06 € 1082.06 EUR
PV32W1S6M20A
3/2-way poppet valve series PV; actuation electrical/spring; internal control air; pressure range 3...10bar; NC; type of coil SCN; connector size 32mm; connection 2"; nominal diameter 50mm; flow rate 60000Nl/min
2,868.59 € 2868.59 EUR
​
